Rated voltage: 450 / 750V
Working temperature: - 60 ~ + 105 ℃

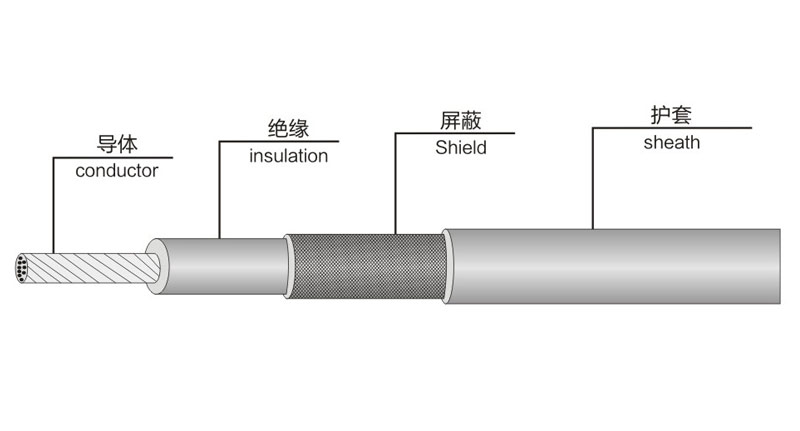

Conductor: tinned copper wire stranded
Insulation: Teflon FEP
Sheath: elastic flame retardant polyethylene sheath
Color: red, yellow, blue, white, black, brown, green, etc.
Product performance: it is wear-resistant, waterproof, cold resistant, oil resistant, not easy to burn, not easy to aging, environmental friendly, and can be used normally in the environment of 98% relative humidity.
Usage: widely used for the installation of monitoring equipment and lines in laboratories and highways, as well as for the wiring of lighting fixtures and high pole lamps on roads.
Product technical parameters
| 標稱截面 | 導體結構 | 絕緣平均厚度 | 護套平均厚度 | 芯數(shù) | 電線平均外徑 | 20℃時導體電阻最大值 |
| （mm2） | 根數(shù)/直徑（mm） | （mm） | （mm） | 屏蔽型 | （Ω/km） | |
| 0.12 | 7/0.15 | 0.20 | 0.7 | 3 | 3.5 | 錫149/銀128 |
| 7/0.15 | 0.20 | 0.7 | 4 | 3.8 | ||
| 7/0.15 | 0.20 | 0.7 | 5 | 4.0 | ||
| 7/0.15 | 0.20 | 0.7 | 6 | 4.2 | ||
| 7/0.15 | 0.20 | 0.7 | 7 | 4.5 | ||
| 7/0.15 | 0.20 | 0.7 | 8 | 4.6 | ||
| 0.20 | 7/0.20 | 0.20 | 0.7 | 4 | 4.1 | 錫90.4/銀83.5 |
| 7/0.20 | 0.20 | 0.7 | 5 | 4.4 | ||
| 7/0.20 | 0.20 | 0.7 | 6 | 4.7 | ||
| 7/0.20 | 0.20 | 0.7 | 7 | 4.9 | ||
| 0.35 | 19/0.16 | 0.23 | 0.8 | 3 | 4.5 | 錫50.8銀46.9 |
| 19/0.16 | 0.23 | 0.8 | 4 | 4.9 | ||
| 19/0.16 | 0.23 | 0.8 | 5 | 5.2 | ||
| 19/0.16 | 0.23 | 0.8 | 6 | 5.6 | ||
| 19/0.16 | 0.23 | 0.8 | 7 | 5.8 | ||
| 0.50 | 19/0.18 | 0.25 | 0.85 | 3 | 4.8 | 錫32.5/銀30.1 |
| 19/0.18 | 0.25 | 0.85 | 4 | 5.2 | ||
| 19/0.18 | 0.25 | 0.85 | 5 | 5.6 | ||
| 19/0.18 | 0.25 | 0.85 | 6 | 6.2 | ||
| 19/0.18 | 0.25 | 0.85 | 7 | 6.5 |
