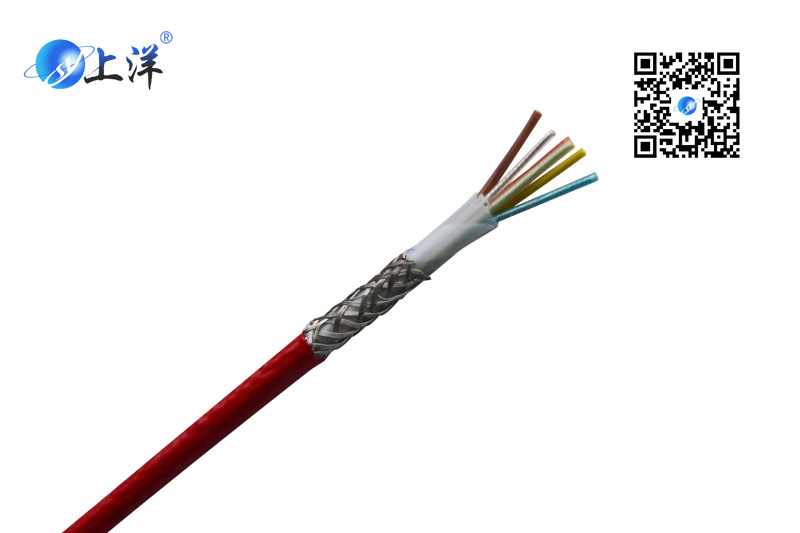

氟塑料絕緣高溫電纜200℃ 250℃ AFF

Home > Products >

氟塑料絕緣高溫電纜200℃ 250℃ AFF

Executive standard: Q / irmv1-2008

Rated voltage: 600V

Working temperature: - 60 ~ + 200 ℃ / 250 ℃

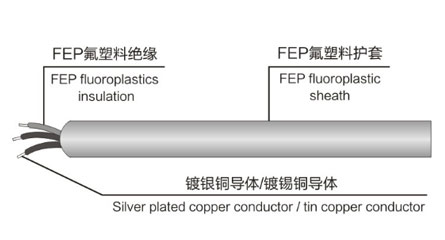

Conductor: stranded tinned or silver plated copper wire

Insulation: FEP (200 ℃) or PTFE (250 ℃) fluoroplastic

Sheath: FEP (200 ℃) or PTFE (250 ℃) fluoroplastic

Color: red, yellow, blue, white, black, brown, green, etc.

Product performance: it has excellent corrosion resistance, oil resistance, strong acid, strong alkali, strong oxidant, etc. it has excellent electrical insulation performance, high voltage resistance, low high frequency loss, no moisture absorption, and large insulation resistance; It has excellent fire and aging resistance and long service life.

Product technical parameters

芯數×截面（mm²）	導體結構 根數/線徑	絕緣		護套		20℃時導體直流電阻（Ω/km）
芯數×截面（mm²）	導體結構 根數/線徑	厚度	外徑	厚度	外徑	20℃時導體直流電阻（Ω/km）
2×0.12	7/0.15	0.20	0.85	0.25	2.20	150
3×0.12	7/0.15	0.20	0.85	0.25	2.30	150
4×0.12	7/0.15	0.20	0.85	0.25	2.60	150
5×0.12	7/0.15	0.20	0.85	0.25	2.80	150
6×0.12	7/0.15	0.20	0.85	0.25	3.10	150
7×0.12	7/0.15	0.20	0.85	0.30	3.15	150
2×0.2	7/0.20	0.20	1.0	0.25	2.50	83.5
3×0.2	7/0.20	0.20	1.0	0.25	2.60	83.5
4×0.2	7/0.20	0.20	1.0	0.25	2.90	83.5
5×0.2	7/0.20	0.20	1.0	0.25	3.20	83.5
6×0.2	7/0.20	0.20	1.0	0.30	3.60	83.5
7×0.2	7/0.20	0.20	1.0	0.30	3.60	83.5
19×0.2	7/0.20	0.20	1.0	0.40	5.80	83.5
2×0.35	19/0.16	0.25	1.30	0.25	3.10	49.5
3×0.35	19/0.16	0.25	1.30	0.25	3.20	49.5
4×0.35	19/0.16	0.25	1.30	0.25	3.65	49.5
5×0.35	19/0.16	0.25	1.30	0.30	4.10	49.5
6×0.35	19/0.16	0.25	1.30	0.30	4.50	49.5
7×0.35	19/0.16	0.25	1.30	0.30	4.50	49.5
19×0.35	19/0.16	0.25	1.30	0.40	7.30	49.5
2×0.5	19/0.18	0.25	1.40	0.25	3.30	36.0
3×0.5	19/0.18	0.25	1.40	0.25	3.40	36.0
4×0.5	19/0.18	0.25	1.40	0.30	4.0	36.0
5×0.5	19/0.18	0.25	1.40	0.30	4.40	36.0
6×0.5	19/0.18	0.25	1.40	0.30	4.80	36.0
7×0.5	19/0.18	0.25	1.40	0.30	4.80	36.0
19×0.5	19/0.18	0.25	1.40	0.50	8.0	36.0
2×0.75	19/0.23	0.25	1.70	0.30	4.0	22.7
3×0.75	19/0.23	0.25	1.70	0.30	4.0	22.7
4×0.75	19/0.23	0.25	1.70	0.30	4.70	22.7
5×0.75	19/0.23	0.25	1.70	0.35	5.30	22.7
6×0.75	19/0.23	0.25	1.70	0.35	5.80	22.7
7×0.75	19/0.23	0.25	1.70	0.35	5.80	22.7
19×0.75	19/0.23	0.25	1.70	0.50	9.50	22.7
2×1	19/0.26	0.25	1.80	0.30	4.20	19.0
3×1	19/0.26	0.25	1.80	0.35	4.30	19.0
4×1	19/0.26	0.25	1.80	0.35	5.10	19.0
5×1	19/0.26	0.25	1.80	0.35	5.60	19.0
6×1	19/0.26	0.25	1.80	0.40	6.20	19.0
7×1	19/0.26	0.25	1.80	0.40	6.20	19.0
8×1	19/0.26	0.25	1.80	0.40	6.80	19.0
19×1	19/0.26	0.25	1.80	0.60	10.20	19.0
2×1.5	19/0.32	0.30	2.25	0.35	5.20	11.7
3×1.5	19/0.32	0.30	2.25	0.35	5.30	11.7
4×1.5	19/0.32	0.30	2.25	0.40	6.20	11.7
5×1.5	19/0.32	0.30	2.25	0.40	6.80	11.7
6×1.5	19/0.32	0.30	2.25	0.40	7.50	11.7
7×1.5	19/0.32	0.30	2.25	0.40	7.60	11.7
19×1.5	19/0.32	0.30	2.25	0.60	12.5	11.7
2×2.5	19/0.41	0.40	2.80	0.40	6.40	6.86
3×2.5	19/0.41	0.40	2.80	0.40	6.40	6.86
4×2.5	19/0.41	0.40	2.80	0.40	7.60	6.86
5×2.5	19/0.41	0.40	2.80	0.50	10.30	6.86
6×2.5	19/0.41	0.40	2.80	0.50	9.40	6.86
7×2.5	19/0.41	0.40	2.80	0.50	9.40	6.86
19×2.5	19/0.41	0.40	2.80	0.70	15.40	6.86
