Product model: ygcp
Executive standard: Q / irmv2 － 2008

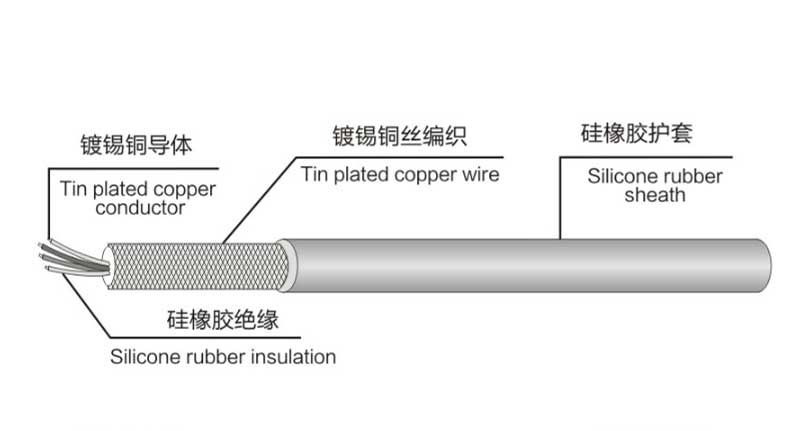

Product characteristics:
1. Rated voltage: 450 / 750V
2. Working temperature: - 60 ~ + 200 ℃
3. Conductor: stranded tinned copper wire
4. Insulation: silicone rubber
5. Tinned copper wire shield
6. Sheath: silicone rubber
7. Color: Red / yellow / Blue / White / Black / Brown / green, etc
Features / uses:
It can be used in long-term humid environment, with excellent electrical performance, waterproof and mold resistance. Excellent bending performance, the minimum bending radius is 16 times of the outer diameter of the cable, and it can be moved. It is used in various mobile motors with AC rated voltage of 450 / 750V and below, steel, aviation, power plant, petrochemical and other high-temperature environments.
Delivery requirements:
According to the contract agreement of both parties, short delivery of no less than 10m is allowed. The quantity shall not exceed 10% of the total delivery length.
Specification structure and technical parameters:
|
橫截面積 （mm2） |
導體結構 根數(shù)/線徑（mm） |
絕緣厚度 （mm） |
芯數(shù) |
直流電阻 （Ω/km） |
包裝長度 （m） |
|
4 |
56 × 0.30 |
1.0 |
2-19 |
5.09 |
100 |
|
6 |
84 × 0.30 |
1.0 |
2-10 |
3.39 |
100 |
|
10 |
84 × 0.40 |
1.2 |
1.82 |
100 | |
|
16 |
126 × 0.40 |
1.2 |
2-5 |
1.22 |
100 |
|
25 |
196 × 0.40 |
1.4 |
0.795 |
100 | |
|
35 |
276 × 0.40 |
1.4 |
0.565 |
100 | |
|
50 |
396 × 0.40 |
1.6 |
0.393 |
100 | |
|
70 |
360 × 0.50 |
1.6 |
0.227 |
100 | |
|
95 |
475 × 0.50 |
1.8 |
0.210 |
100 | |
|
120 |
608 × 0.50 |
1.8 |
0.164 |
100 | |
|
150 |
756 × 0.50 |
2.0 |
0.132 |
100 | |
|
185 |
925 × 0.50 |
2.2 |
0.108 |
100 | |
|
240 |
1221 × 0.50 |
2.4 |
0.0817 |
100 |
