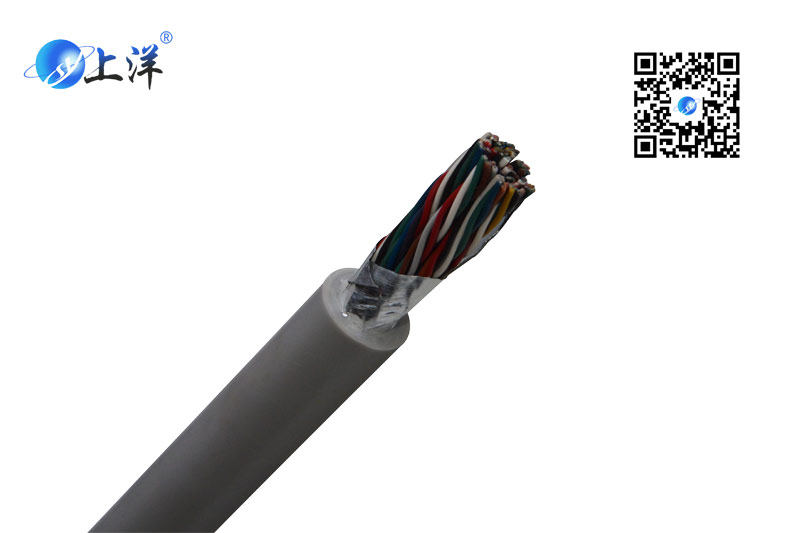

氟塑料絕緣硅橡膠護套高溫電纜200℃ FYGC

Executive standard: Q / irmv3 － 2008

Product characteristics:

1. Rated voltage: 450V / 750V

2. Working temperature: - 60 ~ + 200 ℃

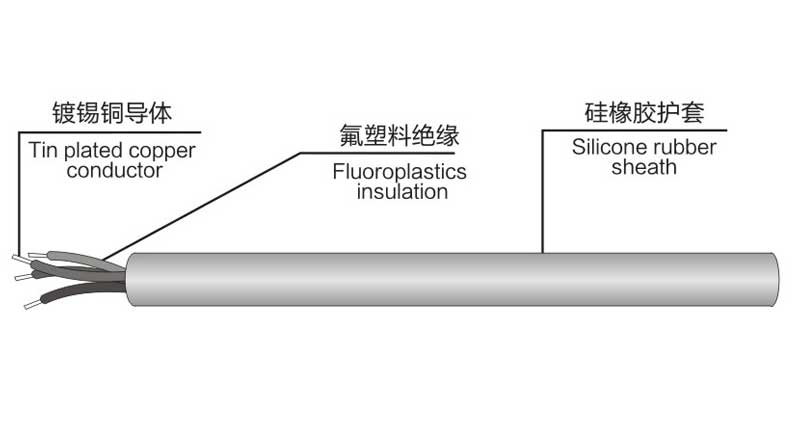

3. Conductor: bare copper conductor or stranded tinned copper wire

4. Insulation: FEP fluoroplastic

5. Sheath: silicone rubber

6. Color: Red / yellow / Blue / White / Black / Brown / green, etc

Features / uses:

When used in a long-term humid environment, it has excellent electrical performance, waterproof and mold resistance. Excellent bending performance, the minimum bending radius is 16 times of the outer diameter of the cable, and it can be moved.

It is used in various mobile motors with AC rated voltage of 450 / 750V and below, steel, aviation, power plant, petrochemical and other high-temperature environments.

Delivery requirements:

According to the contract agreement of both parties, short delivery of no less than 10m is allowed. The quantity shall not exceed 10% of the total delivery length.

Specification structure and technical parameters:

芯數×截面（mm2）	導體結構 根數/線徑	絕緣厚度	絕緣外徑（ mm ）	護套厚度（ mm ）	平均外徑（ mm ）	20 ℃時導體直流電阻（ Ω /km ）
2 × 0.08	7/0.12	0.20	0.78	0.80	2.40	245
3 × 0.08	7/0.12	0.20	0.78	1.0	3.80	245
4 × 0.08	7/0.12	0.20	0.78	1.0	4.00	245
5 × 0.08	7/0.12	0.20	0.78	1.20	4.50	245
6 × 0.08	7/0.12	0.20	0.78	1.40	5.20	245
7 × 0.08	7/0.12	0.20	0.78	1.40	5.20	245
2 × 0.12	7/0.15	0.25	0.95	0.90	3.80	163
3 × 0.12	7/0.15	0.25	0.95	1.0	4.10	163
4 × 0.12	7/0.15	0.25	0.95	1.0	4.30	163
5 × 0.12	7/0.15	0.25	0.95	1.20	5.0	163
6 × 0.12	7/0.15	0.25	0.95	1.20	5.20	163
7 × 0.12	7/0.15	0.25	0.95	1.20	5.20	163
8 × 0.2	7/0.15	0.25	0.95	1.20	5.60	163
10 × 0.12	7/0.15	0.25	0.95	1.30	6.40	163
12 × 0.12	7/0.15	0.25	0.95	1.30	6.80	163
19 × 0.12	7/0.15	0.25	0.95	1.30	7.40	163
2 × 0.2	7/.20	0.25	1.10	1.20	4.60	90.4
3 × 0.2	19/0.12	0.25	1.10	1.30	5.0	90.4
3 × 0.2	7/0.20	0.25	1.10	1.50	5.50	90.4
4 × 0.2	7/0.20	0.25	1.10	1.20	5.0	90.4
5 × 0.2	7/0.20	0.25	1.10	1.20	5.40	90.4
5 × 0.2	19/0.12	0.25	1.10	1.50	6.0	90.4
6 × 0.2	7/0.20	0.25	1.10	1.2	5.80	90.4
7 × 0.2	7/0.20	0.25	1.10	1.2	5.80	90.4
8 × 0.2	7/0.20	0.25	1.10	1.20	6.0	90.4
10 × 0.2	7/0.20	0.25	1.10	1.20	6.80	90.4
12 × 0.2	7/0.20	0.25	1.10	1.40	7.50	90.4
19 × 0.2	7/0.20	0.25	1.10	1.40	8.20	90.4
2 × 0.35	19/0.16	0.25	1.30	0.80	4.20	53.1
3 × 0.35	19/0.16	0.25	1.30	1.10	5.0	53.1
4 × 0.35	19/0.16	0.25	1.30	1.20	5.50	53.1
5 × 0.35	19/0.16	0.25	1.30	1.30	6.20	53.1
6 × 0.35	19/0.16	0.25	1.30	1.40	6.80	53.1
7 × 0.35	19/0.16	0.25	1.30	1.40	6.80	53.1
8 × 0.35	19/0.16	0.25	1.30	1.40	7.0	53.1
9 × 0.35	19/0.16	0.25	1.30	1.50	7.80	53.1
10 × 0.35	19/0.16	0.25	1.30	1.50	8.20	53.1
12 × 0.35	19/0.16	0.25	1.30	1.50	8.40	53.1
14 × 0.35	19/0.16	0.25	1.30	1.50	8.80	53.1
19 × 0.35	19/0.16	0.25	1.30	1.50	9.50	53.1
2 × 0.5	19/0.18	0.25	1.40	1.20	5.20	40.1
3 × 0.5	19/0.18	0.25	1.40	1.20	5.50	40.1
4 × 0.5	19/0.18	0.25	1.40	1.40	6.20	40.1
5 × 0.5	19/0.18	0.25	1.40	1.40	6.60	40.1
6 × 0.5	19/0.18	0.25	1.40	1.40	7.0	40.1
7 × 0.5	19/0.18	0.25	1.40	1.40	7.0	40.1
8 × 0.5	19/0.18	0.25	1.40	1.40	7.40	40.1
9 × 0.5	19/0.18	0.25	1.40	1.40	8.0	40.1
10 × 0.5	19/0.18	0.25	1.40	1.50	8.60	40.1
12 × 0.5	19/0.18	0.25	1.40	1.50	8.80	40.1
14 × 0.5	19/0.18	0.25	1.40	1.50	9.20	40.1
17 × 0.5	19/0.18	0.25	1.40	1.60	10.2	40.1
19 × 0.5	19/0.18	0.25	1.40	1.60	10.2	40.1
2 × 0.75	19/0.23	0.25	1.70	1.10	5.60	24.60
3 × 0.75	19/0.23	0.25	1.70	1.40	6.50	24.60
4 × 0.75	19/0.23	0.25	1.70	1.50	7.20	24.60
5 × 0.75	19/0.23	0.25	1.70	1.50	7.60	24.60
6 × 0.75	19/0.23	0.25	1.70	1.50	8.10	24.60
7 × 0.75	19/0.23	0.25	1.70	1.50	8.10	24.60
8 × 0.75	19/0.23	0.25	1.70	1.50	8.60	24.60
10 × 0.75	19/0.23	0.25	1.70	1.60	10.0	24.60
12 × 0.75	19/0.23	0.25	1.70	1.60	10.30	24.60
14 × 0.75	19/0.23	0.25	1.70	1.60	10.80	24.60
19 × 0.75	19/0.23	0.25	1.70	1.80	12.10	24.60
2 × 1	19/0.26	0.25	1.80	1.20	6.0	20.4
3 × 1	19/0.26	0.25	1.80	1.20	6.20	20.4
4 × 1	19/0.26	0.25	1.80	1.20	6.80	20.4
5 × 1	19/0.26	0.25	1.80	1.40	7.60	20.4
6 × 1	19/0.26	0.25	1.80	1.40	8.20	20.4
7 × 1	19/0.26	0.25	1.80	1.40	8.20	20.4
8 × 1	19/0.26	0.25	1.80	1.40	8.60	20.4
10 × 1	19/0.26	0.25	1.80	1.60	10.40	20.4
12 × 1	19/0.26	0.25	1.80	1.60	10.80	20.4
14 × 1	19/0.26	0.25	1.80	1.60	11.20	20.4
19 × 1	19/0.26	0.25	1.80	1.80	12.60	20.4
2 × 1.5	19/0.32	0.30	2.25	1.0	6.50	12.7
3 × 1.5	19/0.32	0.30	2.25	1.40	7.60	12.7
4 × 1.5	19/0.32	0.30	2.25	1.40	8.20	12.70
5 × 1.5	19/0.32	0.30	2.25	1.50	9.10	12.70
6 × 1.5	19/0.32	0.30	2.25	1.50	9.80	12.70
7 × 1.5	19/0.32	0.30	2.25	1.50	9.80	12.70
8 × 1.5	19/0.32	0.30	2.25	1.60	10.60	12.70
10 × 1.5	19/0.32	0.30	2.25	1.60	12.20	12.70
12 × 1.5	19/0.32	0.30	2.25	1.80	13.0	12.7
14 × 1.5	19/0.32	0.30	2.25	1.80	13.60	12.70
19 × 1.5	19/0.32	0.30	2.25	1.80	14.90	12.70
2 × 2.5	19/0.41	0.40	2.80	1.40	8.40	7.43
3 × 2.5	19/0.41	0.40	2.80	1.40	8.80	7.43
4 × 2.5	19/0.41	0.40	2.80	1.50	9.80	7.43
5 × 2.5	19/0.41	0.40	2.80	1.50	10.60	7.43
6 × 2.5	19/0.41	0.40	2.80	1.60	11.6	7.43
7 × 2.5	19/0.41	0.40	2.80	1.60	11.6	7.43
8 × 2.5	19/0.41	0.40	2.80	1.80	12.80	7.43
10 × 2.5	19/0.41	0.40	2.80	1.80	14.80	7.43
12 × 2.5	19/0.41	0.40	2.80	1.80	15.20	7.43
14 × 2.5	19/0.41	0.40	2.80	2.0	16.40	7.43
19 × 2.5	19/0.41	0.40	2.80	2.0	18.0	7.43
